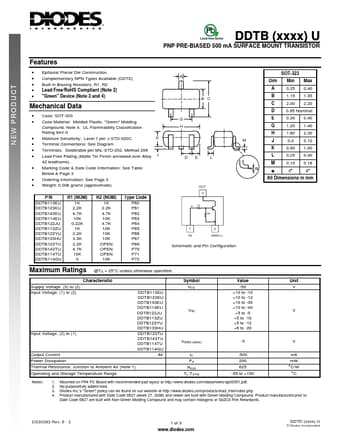

DDTB114GU - PNP PRE-BIASED 500 mA SURFACE MOUNT TRANSISTOR

Features

  • Epitaxial Planar Die Construction.
  • Complementary NPN Types Available (DDTD).
  • Built-In Biasing Resistors, R1, R2.
  • Lead Free/RoHS Compliant (Note 2).
  • "Green" Device (Note 3 and 4) Mechanical Data.
  • Case: SOT-323.
  • Case Material: Molded Plastic, "Green" Molding Compound, Note 4. UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Level 1 per J-STD-020C K.
  • Terminal Connections: See Diagram.
