DDTA144GE - PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTA144GE
Manufacturer	DIODES
File Size	392.62 KB
Description	PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTA144GE Datasheet
Note	This datasheet PDF includes multiple part numbers: DDTA144GE, DDTA114GE. Please refer to the document for exact specifications by model.

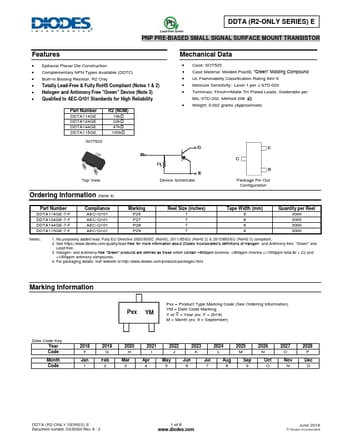

Additional preview pages of the DDTA144GE datasheet.

Mechanical Data.
Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTC).
Built-In Biasing Resistor, R2 Only.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free "Green" Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Part Number DDTA114GE DDTA124GE DDTA144GE DDTA115GE R2 (NOM) 10kΩ 22kΩ 47kΩ 100kΩ.
Case: SOT523.
Case Material: Molded Plastic, “Green” Molding Compound.
UL Fla.
