DDTA124TCA - PNP PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR

Download the DDTA124TCA datasheet PDF. This datasheet also covers the DDTA113TCA variant, as both devices belong to the same pnp pre-biased small signal sot-23 surface mount transistor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Epitaxial Planar Die Construction.
  • Complementary NPN Types Available (DDTC).
  • Built-In Biasing Resistor, R1 only.
  • Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 2 and 3) A C TOP VIEW BC Mechanical Data.
  • Case: SOT-23.
  • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Level 1 per J-STD-020D.
  • Terminal Connections: See Diagram.
  • Terminals: Soldera.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DDTA113TCA-Diodes.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DDTA123YCA PNP Digital Transistor MCC
DDTB113EC (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR Diodes Incorporated
DDTB113ZC (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR Diodes Incorporated
DDTB114EC (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR Diodes Incorporated
DDTB114GC (DDTBxxxC) PNP PRE-BIASED 500 mA SOT-23 SURFACE MOUNT TRANSISTOR Diodes Incorporated

Other Datasheets by Diodes Incorporated

Part Number Description
DDTA124TE PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
DDTA124TKA PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
DDTA124TUA PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
DDTA124ECA PRE-BIASED SMALL SIGNAL SURFACE MOUNT PNP TRANSISTOR
DDTA124EE PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

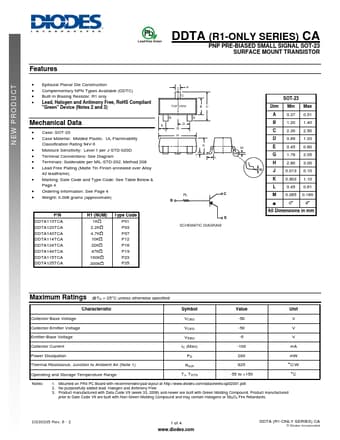

NEW PRODUCT DDTA (R1-ONLY SERIES) CA PNP PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR Features • Epitaxial Planar Die Construction • Complementary NPN Types Available (DDTC) • Built-In Biasing Resistor, R1 only • Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 2 and 3) A C TOP VIEW BC Mechanical Data • Case: SOT-23 • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020D • Terminal Connections: See Diagram • Terminals: Solderable per MIL-STD-202, Method 208 • Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). • Marking: Date Code and Type Code: See Table Below & Page 4 • Ordering Information: See Page 4 • Weight: 0.
