DDTA115EKA - PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTA115EKA
Manufacturer	DIODES
File Size	165.40 KB
Description	PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTA115EKA Datasheet
Note	This datasheet PDF includes multiple part numbers: DDTA115EKA, DDTA123EKA. Please refer to the document for exact specifications by model.

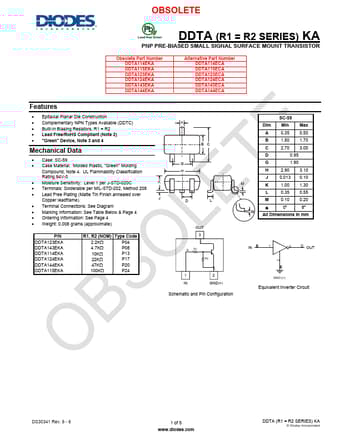

Additional preview pages of the DDTA115EKA datasheet.

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTC).
Built-In Biasing Resistors, R1 = R2.
Lead Free/RoHS Compliant (Note 2).
"Green" Device, Note 3 and 4 Mechanical Data.
Case: SC-59.
Case Material: Molded Plastic, "Green" Molding Compound, Note 4. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminals: Solderable per MIL-STD-202, Method 208.
Lead Free Plating (Matte Tin Finis.
