DDTA114EUA - PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTA114EUA
Manufacturer	DIODES
File Size	81.61 KB
Description	PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTA114EUA Datasheet
Note	This datasheet PDF includes multiple part numbers: DDTA114EUA, DDTA123EUA. Please refer to the document for exact specifications by model.

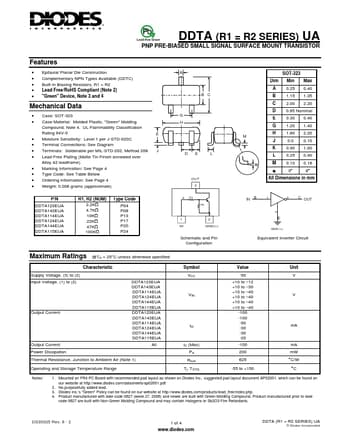

Additional preview pages of the DDTA114EUA datasheet.

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTC).
Built-In Biasing Resistors, R1 = R2.
Lead Free/RoHS Compliant (Note 2).
"Green" Device, Note 3 and 4 Mechanical Data.
Case: SOT-323.
Case Material: Molded Plastic, "Green" Molding Compound, Note 4. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminal Connections: See Diagram.
Terminal.
