BCR420UW6Q LINEAR LED CONSTANT CURRENT REGULATOR

BCR420UW6Q Description

BCR420UW6Q / BCR421UW6Q LINEAR LED CONSTANT CURRENT REGULATOR IN SOT26 .
These linear LED drivers are designed to meet the stringent requirements of automotive applications.

BCR420UW6Q Features

* LED Constant Current Regulator using NPN Emitter-Follower with Emitter Resistor to Current Limit
* IOUT
* 10mA ± 10% Constant Current (Preset)
* IOUT up to 350mA Adjustable with an External Resistor (BCR421UW6Q)
* VOUT
* 40V Supply Voltage
* PD up to 1W in SOT26

BCR420UW6Q Applications

* The BCR420UW6Q and BCR421UW6Q monolithically integrate transistors, diodes, and resistors to function as a Constant Current Regulator (CCR) for linear LED driving. The device regulates with a preset 10mA nominal that can be adjusted with an external resistor up to 350mA. It is designed for driving

📥 Download Datasheet

Preview of BCR420UW6Q PDF

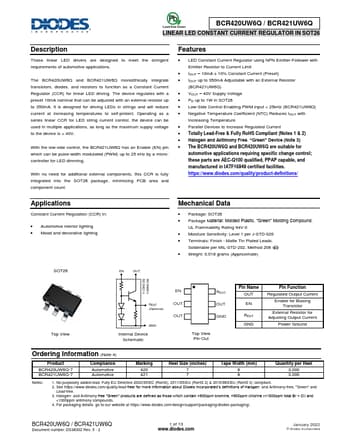

datasheet Preview Page 2 datasheet Preview Page 3
