AS78L15, AS78Lxx 100mA POSITIVE VOLTAGE REGULATOR

AS78L15 Description

AS78LXX 100mA POSITIVE VOLTAGE REGULATOR .
The AS78LXX series are three terminal positive regulators designed for a wide variety of applications including local, on-card regulation.

AS78L15 Features

* Output Current up to 100mA
* Fixed Output Voltages of 5V, 12V and 15V
* Output Voltage Accuracy of ±5% over the Full Temperature Range
* Internal Short Circuit Current Limiting
* Internal Thermal Overload Protection
* No External Components
* Output Transistor Safe-Area

AS78L15 Applications

* including local, on-card regulation. This series of regulators are complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make them virtually immune from output overload. If adequate heat sinking are provided, these regulators can deliver output curren

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AS78L15, AS78Lxx. Please refer to the document for exact specifications by model.

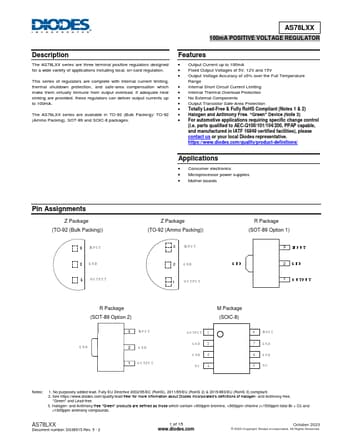

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS78L15, AS78Lxx
Manufacturer
DIODES ↗
File Size
0.96 MB
Datasheet
AS78Lxx_BCDSemiconductor.pdf
Description
100mA POSITIVE VOLTAGE REGULATOR
Note
This datasheet PDF includes multiple part numbers: AS78L15, AS78Lxx.
Please refer to the document for exact specifications by model.
