AS431H - ADJUSTABLE PRECISION SHUNT REGULATORS

AS431H Description

AS431H ADJUSTABLE PRECISION SHUNT REGULATORS .
The AS431H is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range.

AS431H Applications

* such as switching power supplies, chargers, and other adjustable regulators. Pin Assignments (Top View) ANODE 3 The output voltage of the AS431H can be set to any value between VREF (2.495V) and the corresponding maximum cathode voltage (36V). The AS431H precision reference is offered in two volta

📥 Download Datasheet

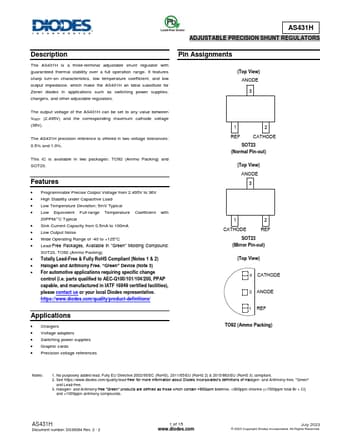

Preview of AS431H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS431H
Manufacturer
DIODES ↗
File Size
669.03 KB
Datasheet
AS431H-Diodes.pdf
Description
ADJUSTABLE PRECISION SHUNT REGULATORS
