APX810, APX809 3-PIN MICROPROCESSOR RESET CIRCUITS

APX810 Description

APX809/810 3-PIN MICROPROCESSOR RESET CIRCUITS .
The APX809/810 are used for microprocessor ( µP) su pervisory circuits to monitor the power supplies in µP and digital systems.

APX810 Features

* Pu
* Pu
* N
* Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages Fully Specified Over Temperature Available in three Output Configurations sh-Pull RESET Active Low (APX809) sh

APX810 Applications

* Computers
* C ontrollers
* I ntelligent Instruments
* Critical µP and µC Power Monitoring
* P ortable/Battery Powered Equipment
* A utomotive Ordering Information APX 8 XX - XX XX G - 7 Enable 09 : Active-Low 10 : Active-High Voltage 46 44 40 31 29 26

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: APX810, APX809. Please refer to the document for exact specifications by model.

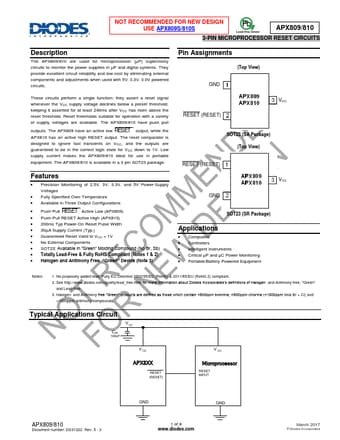

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APX810, APX809
Manufacturer
DIODES ↗
File Size
456.74 KB
Datasheet
APX809-Diodes.pdf
Description
3-PIN MICROPROCESSOR RESET CIRCUITS
Note
This datasheet PDF includes multiple part numbers: APX810, APX809.
Please refer to the document for exact specifications by model.
