AP9214L - SINGLE CHIP SOLUTION

AP9214L Description

NEW PRODUCT AP9214L SINGLE CHIP SOLUTION FOR 1-CELL Li+ BATTERY PACK .
The AP9214L is a single chip protection solution specially designed for 1-cell Li+ rechargeable battery pack application.

AP9214L Features

* and can turnoff the N-CH MOSFET by detecting overcharge voltage/current, over discharge voltage/current, or load short circuit. The AP9214L has built-in fixed delay time to save external components. Pin Assignments (Top View) S1 1 6 S2 EP VSS 2 5 NC VDD 3 4 VM U-DFN2535-6 (Option 1) The AP

AP9214L Applications

* Li+ Rechargeable Battery Pack Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www. diodes. com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-

📥 Download Datasheet

Preview of AP9214L PDF

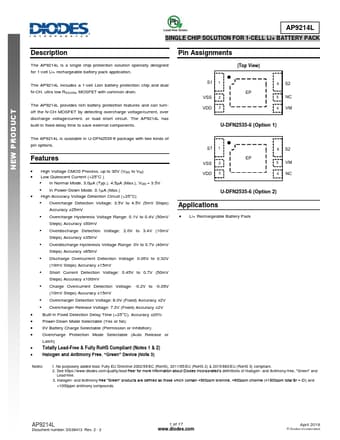

datasheet Preview Page 2 datasheet Preview Page 3
