AP4310A - DUAL OP AMP AND VOLTAGE REFERENCE

Diodes

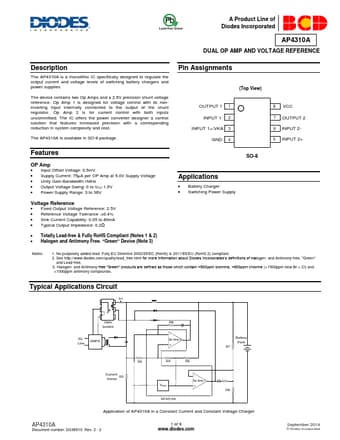

AP4310A Datasheet Preview — Preview of AP4310A PDF

Datasheet Details

Part number	AP4310A
Manufacturer	DIODES ↗
File Size	456.63 KB
Description	DUAL OP AMP AND VOLTAGE REFERENCE
Datasheet	AP4310A-Diodes.pdf

AP4310A Product details

Description

The AP4310A is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies The device contains two Op Amps and a 2.5V precision shunt voltage reference.Op Amp 1 is designed for voltage control with its noninverting input internally connected to the output of the shunt regulator.Op Amp 2 is for current control with both inputs uncommitted.The IC offers the power converter designer a control solution that

Features

increased precision with a corresponding reduction in system complexity and cost. The AP4310A is available in SO-8 package. Pin Assignments (Top View) OUTPUT 1 1 INPUT 1- 2 INPUT 1+/VKA 3 GND 4 8 VCC 7 OUTPUT 2 6 INPUT 25 INPUT 2+ Features OP Amp.
Input Offset Voltage: 0.5mV.
Supply Current: 75A per OP Amp at 5.0V Supply Voltage.
Unity Gain Bandwidth:1MHz.
Output Voltage Swing: 0 to VCC-1.5V.
Power Supply Range: 3 to 36V Voltage Reference.
Fixed Output Voltage R.
