AL5802LP-7 - LED DRIVER

Diodes

📥 Download Datasheet

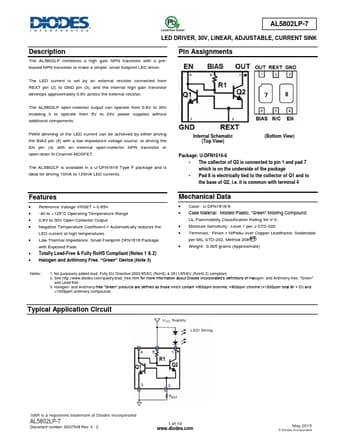

AL5802LP-7 Datasheet Preview — Preview of AL5802LP-7 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AL5802LP-7
Manufacturer	DIODES
File Size	0.98 MB
Description	LED DRIVER
Datasheet	AL5802LP-7-Diodes.pdf

AL5802LP-7 Product details

Description

The AL5802LP combines a high gain NPN transistor with a prebiased NPN transistor to make a simple, small footprint LED driver.

Features

Reference Voltage VRSET = 0.65V.
-40 to +125°C Operating Temperature Range.
0.8V to 30V Open-Collector Output.
Negative Temperature Coefficient.
Automatically reduces the LED current at high temperatures.
Low Thermal Impedance, Small Footprint DFN1616 Package with Exposed Pads.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
Case: U-DFN1616-6.
Case Material: Molded.
