AL1665 - HIGH PERFORMANCE DIMMABLE LED CONTROLLER

Diodes

Datasheet Details

Part number	AL1665
Manufacturer	DIODES
File Size	831.38 KB
Description	HIGH PERFORMANCE DIMMABLE LED CONTROLLER

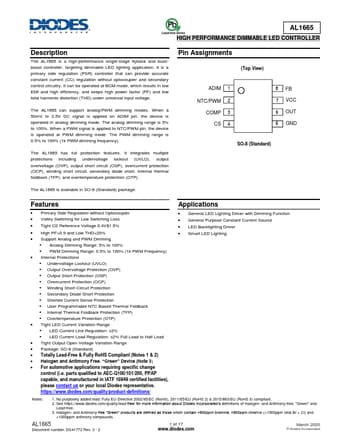

Datasheet	AL1665-Diodes.pdf

The AL1665 is a high-performance single-stage flyback and buckboost controller, targeting dimmable LED lighting application.

It integrates multiple protections including undervoltage lockout (UVLO), output overvoltage (OVP), output short circuit (OSP), overcurrent protection (OCP), winding short circuit, secondary diode short, internal thermal foldback (TFP), and overtemperature protection (OTP). The AL1665 is available in SO-8 (Standard) package. Pin Assignments (Top View) ADIM 1 NTC/PWM 2 COMP 3 CS 4 8 FB 7 VCC 6 OUT 5 GND SO-8 (Standard) Features.
