AH3563Q - HIGH VOLTAGE HIGH SENSITIVITY AUTOMOTIVE HALL EFFECT OMNIPOLAR SWITCH

Diodes

📥 Download Datasheet

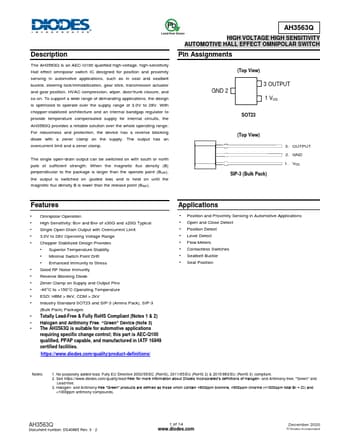

AH3563Q Datasheet Preview — Preview of AH3563Q PDF

Datasheet Details

Part number	AH3563Q
Manufacturer	DIODES
File Size	852.24 KB
Description	HIGH VOLTAGE HIGH SENSITIVITY AUTOMOTIVE HALL EFFECT OMNIPOLAR SWITCH
Datasheet	AH3563Q-Diodes.pdf

AH3563Q Product details

Description

The AH3563Q is an AEC-Q100 qualified high-voltage, high-sensitivity Hall effect omnipolar switch IC designed for position and proximity sensing in automotive applications, such as in seat and seatbelt buckle, steering lock/immobilization, gear stick, transmission actuator and gear position, HVAC compression, wiper, door/trunk closure, and so on.

Features

Omnipolar Operation.
High Sensitivity: BOP and BRP of ±30G and ±20G Typical.
Single Open-Drain Output with Overcurrent Limit.
3.0V to 28V Operating Voltage Range.
Chopper Stabilized Design Provides.
Superior Temperature Stability.
Minimal Switch Point Drift.
Enhanced Immunity to Stress.
Good RF Noise Immunity.
Reverse Blocking Diode.
Zener Clamp on Supply and Output Pins.
-40°C to +150°C.
