AH1807 - MEDIUM SENSITIVITY MICROPOWER OMNIPLOAR HALL-EFFECT SWITCH

General Description

The AH1807 is a medium sensitivity micropower Omnipolar Hall Effect switch IC.

It is designed for battery powered consumer products, home appliances, and industrial equipment such as smart meter magnetic tamper detect.

Key Features

  • Omnipolar (North or South pole) Operation.
  • Medium Sensitivity.
  • Single Open Drain Output.
  • Micropower Operation.
  • 2.5V to 5.5V Operating Range.
  • Chopper Stabilized Design Provides:.
  • Superior Temperature Stability.
  • Minimal Switch Point Drift.
  • Enhanced Immunity to Stress.
  • Good RF Noise immunity.
  • -40°C to +125°C Operating Temperature.
  • High ESD.
  • Small Low Profile SOT553 and Industry Standard SC59 and SIP-3L Packages.
  • Totally Lead-Fre.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AH180 MICROPOWER OMNIPOLAR HALL-EFFECT SENSOR SWITCH Diodes Incorporated
AH182 (AH182 / AH183) LOW POWER HALL EFFECT SWITCH Diodes Incorporated
AH182 (AH182 / AH183) Low power Hall Effect Switch ANACHIP
AH183 (AH182 / AH183) LOW POWER HALL EFFECT SWITCH Diodes Incorporated
AH183 (AH182 / AH183) Low power Hall Effect Switch ANACHIP

Other Datasheets by Diodes Incorporated

Part Number Description
AH1801 ULTRA-SENSITIVE HALL EFFECT SWITCH
AH1802 ULTRA-SENSITIVE OMNIPOLAR HALL-EFFECT SENSOR SWITCH
AH1803 ULTRA-SENSITIVE HALL EFFECT SWITCH
AH1804 MICROPOWER OMNIPOLAR HALL EFFECT SENSORSWITCH
AH1806 HIGH SENSIVITY MICROPOWER OMNIPOLAR HALL-EFFECT SWITCH

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

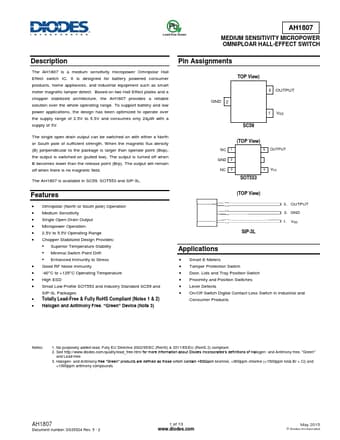

AH1807 MEDIUM SENSITIVITY MICROPOWER OMNIPLOAR HALL-EFFECT SWITCH Description The AH1807 is a medium sensitivity micropower Omnipolar Hall Effect switch IC. It is designed for battery powered consumer products, home appliances, and industrial equipment such as smart meter magnetic tamper detect. Based on two Hall Effect plates and a chopper stabilized architecture, the AH1807 provides a reliable solution over the whole operating range. To support battery and low power applications, the design has been optimized to operate over the supply range of 2.5V to 5.5V and consumes only 24µW with a supply of 3V. The single open drain output can be switched on with either a North or South pole of sufficient strength.
