74HC32T14, 74HC32 QUADRUPLE 2-INPUT OR GATES

74HC32T14 Description

74HC32 QUADRUPLE 2-INPUT OR GATES .
The 74HC32 provides provides four independent 2-input OR gates with standard push-pull outputs.

74HC32T14 Features

* Wide Supply Voltage Range from 2.0V to 6.0V
* Sinks or sources 4mA at VCC = 4.5V
* CMOS low power consumption
* Schmitt Trigger Action at All Inputs
* ESD Protection Exceeds JESD 22
* 200-V Machine Model (A115-A)
* 2000-V Human Body Model (A114-A)

74HC32T14 Applications

* General Purpose Logic
* Wide array of products such as:
* PCs, Networking, Notebooks, Netbooks
* Computer Peripherals, Hard Drives, CD/DVD ROM
* TV, DVD, DVR, Set Top Box Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) com

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 74HC32T14, 74HC32. Please refer to the document for exact specifications by model.

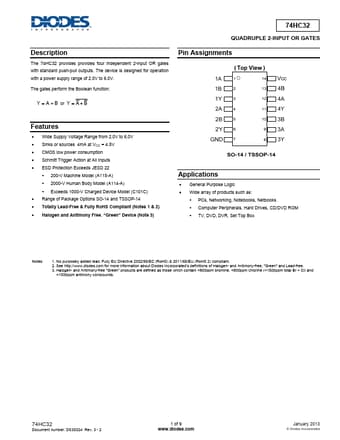

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
74HC32T14, 74HC32
Manufacturer
DIODES ↗
File Size
292.67 KB
Datasheet
74HC32-Diodes.pdf
Description
QUADRUPLE 2-INPUT OR GATES
Note
This datasheet PDF includes multiple part numbers: 74HC32T14, 74HC32.
Please refer to the document for exact specifications by model.
