74AHC1G02W5, 74AHC1G02 SINGLE 2 INPUT POSITIVE NOR GATE

Diodes

Description

NEW PRODUCT 74AHC1G02 SINGLE 2 INPUT POSITIVE NOR GATE .
The 74AHC1G02 is a single 2-input positive NOR gate with a standard push-pull output.

📥 Download Datasheet

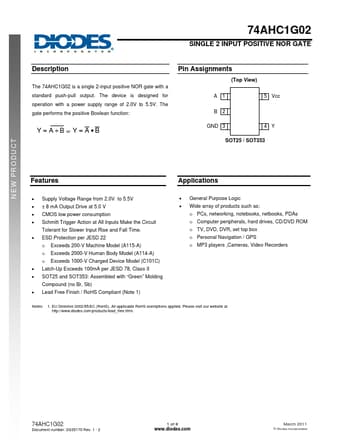

74AHC1G02W5 Datasheet Preview — This datasheet PDF includes multiple part numbers: 74AHC1G02W5, 74AHC1G02. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 74AHC1G02W5, 74AHC1G02
Manufacturer: DIODES ↗
File Size: 192.24 KB
Datasheet: 74AHC1G02-Diodes.pdf
Description: SINGLE 2 INPUT POSITIVE NOR GATE
Note: This datasheet PDF includes multiple part numbers: 74AHC1G02W5, 74AHC1G02.
Please refer to the document for exact specifications by model.

Applications

* Supply Voltage Range from 2.0V to 5.5V
* ± 8 mA Output Drive at 5.0 V
* CMOS low power consumption
* Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for Slower Input Rise and Fall Time.
* ESD Protection per JESD 22 o Exceeds 200-V Machine Mod
