SB180 - 1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER

Key Features

  • Schottky Barrier Chip Guard Ring Die Construction for Transient Protection Ideally Suited for Automatic Assembly Low Power Loss, High Efficiency Surge Overload Rating to 25A Peak For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SB180 1 AMPERE SCHOTTKY BARRIER RECTIFIERS Pan Jit International Inc.
SB180 SCHOTTKY BARRIER RECTIFIER GOOD-ARK Electronics
SB180 SCHOTTKY BARRIER RECTIFIER DIODES EIC
SB180 Schottky Rectifiers Fairchild Semiconductor
SB180 Schottky Barrier Rectifiers LRC

Other Datasheets by Diodes Incorporated

Part Number Description
SB1100 1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
SB120 1.0A SCHOTTKY BARRIER RECTIFIER
SB130 1.0A SCHOTTKY BARRIER RECTIFIER
SB140 1.0A SCHOTTKY BARRIER RECTIFIER
SB150 1.0A SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

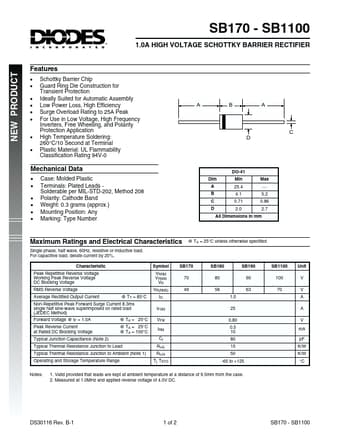

SB170 - SB1100 1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER Features · · · · · · · · Schottky Barrier Chip Guard Ring Die Construction for Transient Protection Ideally Suited for Automatic Assembly Low Power Loss, High Efficiency Surge Overload Rating to 25A Peak For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application High Temperature Soldering: 260°C/10 Second at Terminal Plastic Material: UL Flammability Classification Rating 94V-0 NEW PRODUCT A B A D C Mechanical Data · · · · · · Case: Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Weight: 0.3 grams (approx.) Mounting Position: Any Marking: Type Number Dim A B C D DO-41 Min 25.4 4.1 0.71 2.0 Max ¾ 5.2 0.86 2.
