S9004P2CT - 30A SCHOTTKY BARRIER RECTIFIER

Key Features

  • Schottky Barrier Chip Guard Ring Die Construction for Transient Protection Low Power Loss, High Efficiency High Surge Capability High Current Capability and Low Forward Voltage Drop For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S9011 NPN Transistor WEJ
S9011 NPN Silicon Epitaxial Planar Transistor BL
S9011 NPN Transistor GME
S9012 PNP Epitaxial Silicon Transistor Fairchild Semiconductor
S9012 PNP General Purpose Transistors Weitron Technology

Other Datasheets by Diodes Incorporated

Part Number Description
S9005P2CT 20A SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

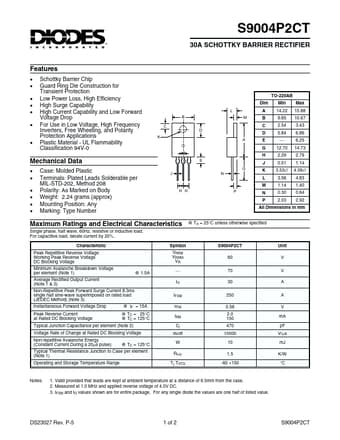

S9004P2CT 30A SCHOTTKY BARRIER RECTIFIER Features · · · · · · · Schottky Barrier Chip Guard Ring Die Construction for Transient Protection Low Power Loss, High Efficiency High Surge Capability High Current Capability and Low Forward Voltage Drop For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applications Plastic Material - UL Flammability Classification 94V-0 TO-220AB Dim L B C K D A M Min 14.22 9.65 2.54 5.84 ¾ 12.70 2.29 0.51 3.53Æ 3.56 1.14 0.30 2.03 Max 15.88 10.67 3.43 6.86 6.25 14.73 2.79 1.14 4.09Æ 4.83 1.40 0.64 2.92 A B C D E G H J G Mechanical Data · · · · · · Case: Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: As Marked on Body Weight: 2.
