PR2001G - 2.0A FAST RECOVERY GLASS PASSIVATED RECTIFIER

Diodes Incorporated

Datasheet Details

Part number	PR2001G
Manufacturer	DIODES Incorporated
File Size	62.33 KB
Description	2.0A FAST RECOVERY GLASS PASSIVATED RECTIFIER

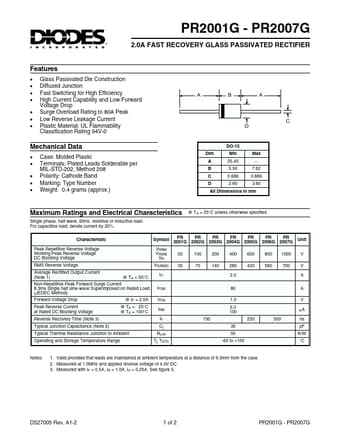

Datasheet	PR2001G_DiodesIncorporated.pdf

Glass Passivated Die Construction Diffused Junction Fast Switching for High Efficiency High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 80A Peak Low Reverse Leakage Current Plastic Material: UL Flammability Classification Rating 94V-0 A B A D C Mechanical Data.
Case: Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Marking: Type Number Weig.
