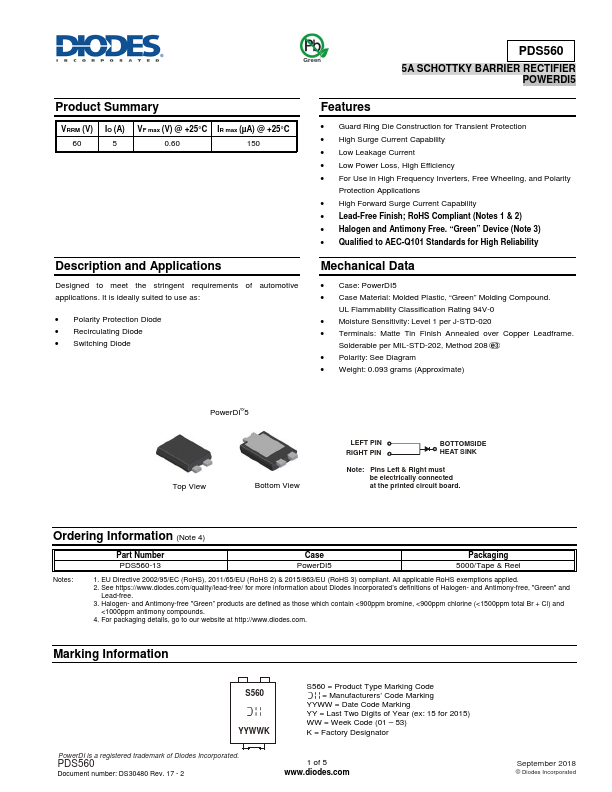

PDS560 - 5A SCHOTTKY BARRIER RECTIFIER

Name: PDS560
SKU: PDS560-583369

Diodes Incorporated

📥 Download Datasheet

PDS560 Datasheet Preview — Preview of PDS560 PDF

Datasheet Details

Part number	PDS560
Manufacturer	DIODES Incorporated
File Size	237.81 KB
Description	5A SCHOTTKY BARRIER RECTIFIER
Datasheet	PDS560_DiodesIncorporated.pdf

PDS560 Product details

Description

and Applications Designed to meet the stringent requirements of automotive applications.It is ideally suited to use as: Polarity Protection Diode Recirculating Diode Switching Diode

Features

Guard Ring Die Construction for Transient Protection.
High Surge Current Capability.
Low Leakage Current.
Low Power Loss, High Efficiency.
For Use in High Frequency Inverters, Free Wheeling, and Polarity Protection.
