MMDT3906 - DUAL PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Diodes Incorporated

📥 Download Datasheet

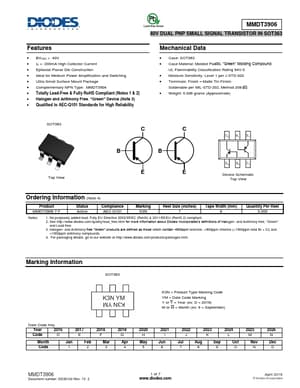

MMDT3906 Datasheet Preview — Preview of MMDT3906 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MMDT3906
Manufacturer	DIODES Incorporated
File Size	429.04 KB
Description	DUAL PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	MMDT3906_DiodesIncorporated.pdf

MMDT3906 Product details

Features

BVCEO > -40V.
IC = -200mA High Collector Current.
Epitaxial Planar Die Construction.
Ideal for Medium Power Amplification and Switching.
Ultra-Small Surface Mount Package.
Complementary NPN Type: MMDT3904.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: SOT363.
Case Material: Molded Plastic, “Green” Moldin.
