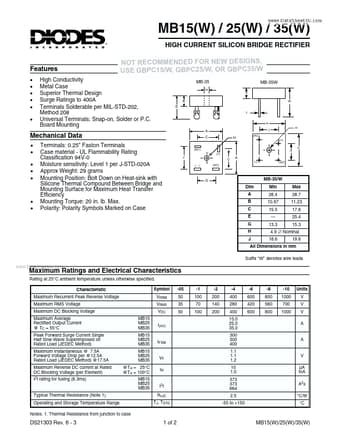

MB15(W) / 25(W) / 35(W)
HIGH CURRENT SILICON BRIDGE RECTIFIER Features
· · · · · ·
NOT RECOMMENDED FOR NEW DESIGNS, USE GBPC15/W, GBPC25/W, OR GBPC35/W
MB-35
H B E
L A B M
High Conductivity Metal Case Superior Thermal Design Surge Ratings to 400A Terminals Solderable per MIL-STD-202, Method 208 Universal Terminals; Snap-on, Solder or P.C. Board Mounting
MB-35W
Mechanical Data
· · · · · Terminals: 0.25" Faston Terminals Case material - UL Flammability Rating Classification 94V-0 Moisture sensitivity: Level 1 per J-STD-020A Approx Weight: 29 grams Mounting Position: Bolt Down on Heat-sink with Silicone Thermal Compound Between Bridge and Mounting Surface for Maximum Heat Transfer Efficiency Mounting Torque: 20 in. lb. Max.
