ES2A - 2.0A SURFACE MOUNT SUPER-FAST RECTIFIER

Features

  • Glass Passivated Die Construction.
  • Super-Fast Recovery Time For High Efficiency.
  • Surge Overload Rating to 50A Peak.
  • Ideally Suited for Automated Assembly.
  • Lead Free Finish/RoHS Compliant (Note 1).
  • Green Molding Compound (No Halogen and Antimony) (Note 2)   Green ES2A/A - ES2D/A 2.0A.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ES2A 2.0 Ampere Superfast Rectifiers Fairchild Semiconductor
ES2A 2 Amp Super Fast Recovery Silicon Rectifier Micro Commercial Components
ES2A 2A SURFACE MOUNT FAST EFFICIENT RECOVERY RECTIFIERS Frontier Electronics
ES2A SURFACE MOUNT SUPER FAST RECTIFIER Suntan
ES2A 2.0 Amps. Surface Mount Super Fast Rectifiers JGD

Other Datasheets by Diodes Incorporated

Part Number Description
ES2AA 2.0A SURFACE MOUNT SUPER-FAST RECTIFIER
ES2B 2.0A SURFACE MOUNT SUPER-FAST RECTIFIER
ES2BA 2.0A SURFACE MOUNT SUPER-FAST RECTIFIER
ES2C 2.0A SURFACE MOUNT SUPER-FAST RECTIFIER
ES2CA 2.0A SURFACE MOUNT SUPER-FAST RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

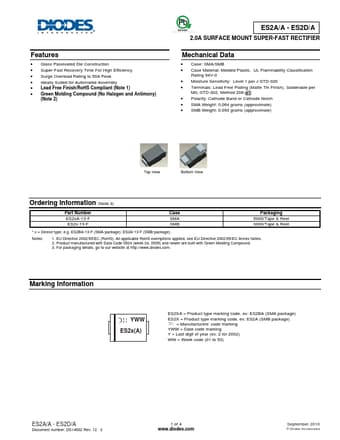

Features • Glass Passivated Die Construction • Super-Fast Recovery Time For High Efficiency • Surge Overload Rating to 50A Peak • Ideally Suited for Automated Assembly • Lead Free Finish/RoHS Compliant (Note 1) • Green Molding Compound (No Halogen and Antimony) (Note 2)   Green ES2A/A - ES2D/A 2.0A SURFACE MOUNT SUPER-FAST RECTIFIER Mechanical Data • Case: SMA/SMB • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 • Polarity: Cathode Band or Cathode Notch • SMA Weight: 0.064 grams (approximate) • SMB Weight: 0.
