DNBT8105 - 1A NPN SURFACE MOUNT TRANSISTOR

Product Overview

Diodes Incorporated

Part number	DNBT8105
Manufacturer	DIODES Incorporated
File Size	178.31 KB
Description	1A NPN SURFACE MOUNT TRANSISTOR
Datasheet	DNBT8105 Datasheet

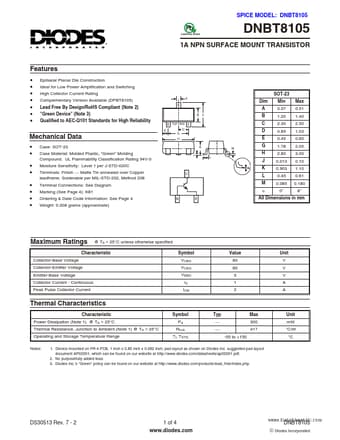

Additional preview pages of the DNBT8105 datasheet.

Epitaxial Planar Die Construction Ideal for Low Power Amplification and Switching High Collector Current Rating Complementary Version Available (DPBT8105) Lead Free By Design/RoHS Compliant (Note 2) "Green Device" (Note 3) Qualified to AEC-Q101 Standards for High Reliability E B TOP VIEW E SOT-23 A C B C Dim A B C D E K J L M Min 0.37 1.20 2.30 0.89 0.45 1.78 2.80 0.013 0.903 0.45 0.085 0° Max 0.51 1.40 2.50 1.03 0.60 2.05 3.00 0.10 1.10 0.61 0.180 8.
