DMN5L06V - Dual N-Channel MOSFET

Product Overview

Diodes Incorporated

📥 Download Datasheet

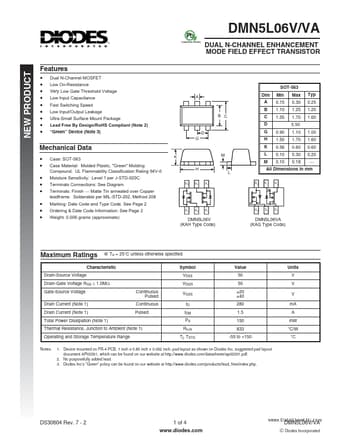

DMN5L06V Dual N-Channel MOSFET by Diodes Incorporated - Datasheet Preview — Datasheet preview – DMN5L06V

Datasheet Details

Part number	DMN5L06V
Manufacturer	DIODES Incorporated
File Size	132.24 KB
Description	Dual N-Channel MOSFET
Datasheet	DMN5L06V Datasheet
Additional preview pages of the DMN5L06V datasheet.

Product details

Features

Dual N-Channel MOSFET Low On-Resistance Very Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Low Input/Output Leakage Ultra-Small Surface Mount Package Lead Free By Design/RoHS Compliant (Note 2) “Green” Device (Note 3) G D B C A SOT-563 Dim A B C D G H K K H M Min 0.15 1.10 1.55 0.90 1.50 0.56 0.10 0.10 Max 0.30 1.25 1.70 0.50 1.10 1.70 0.60 0.30 0.18 Typ 0.25 1.20 1.60 1.00 1.60 0.60 0.20 ¾ Mechanical Data.
