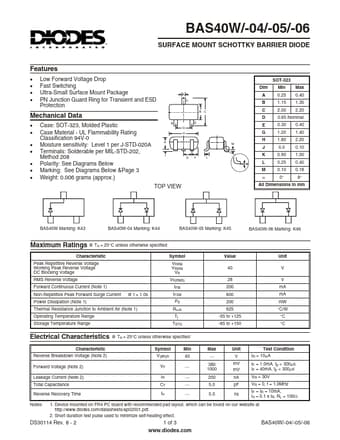

BAS40W-7, SURFACE MOUNT SCHOTTKY BARRIER DIODE

BAS40W/-04/-05/-06 SURFACE MOUNT SCHOTTKY BARRIER DIODE

Features

* Low Forward Voltage Drop Fast Switching Ultra-Small Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection SOT-323 Dim A C B C Min 0.25 1.15 2.00 0.30 1.20 1.80 0.0 0.90 0.25 0.10 0° Max 0.40 1.35 2.20 0.40 1.40 2.20 0.10 1.00 0.40 0.18 8° A B C D E
