AP8802 - 1A LED Step-Down Converter

Diodes Incorporated

📥 Download Datasheet

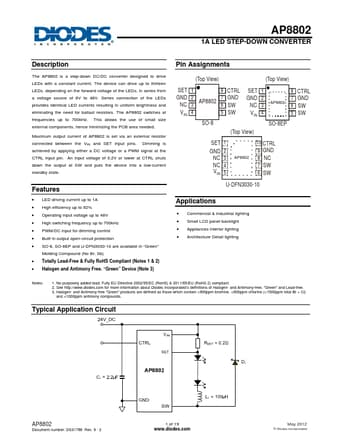

AP8802 Datasheet Preview — Preview of AP8802 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AP8802
Manufacturer	DIODES ↗ Incorporated
File Size	682.47 KB
Description	1A LED Step-Down Converter
Datasheet	AP8802_DiodesIncorporated.pdf

AP8802 Product details

Description

The AP8802 is a step-down DC/DC converter designed to drive LEDs with a constant current.

Features

LED driving current up to 1A.
High efficiency up to 92%.
Operating input voltage up to 48V.
High switching frequency up to 700kHz.
PWM/DC input for dimming control.
Built-in output open-circuit protection.
SO-8, SO-8EP and U-DFN3030-10 are available in “Green” Molding Compound (No Br, Sb).
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) Pin Assignments (T.
