AP1704 - 3-PIN MICROPROCESSOR RESET

Product Overview

Diodes Incorporated

Part number	AP1704
Manufacturer	DIODES Incorporated
File Size	108.23 KB
Description	3-PIN MICROPROCESSOR RESET
Datasheet	AP1704 Datasheet
Note	This datasheet PDF includes multiple part numbers: AP1704, AP1701. Please refer to the document for exact specifications by model.

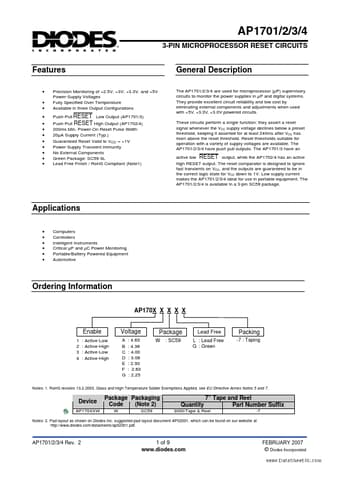

Additional preview pages of the AP1704 datasheet.

The AP1701/2/3/4 are used for microprocessor (µP) supervisory circuits to monitor the power supplies in µP and digital systems.

Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages Fully Specified Over Temperature Available in three Output Configurations Push-Pull RESET Low Output (AP1701/3) Push-Pull RESET High Output (AP1702/4) 200ms Min. Power-On Reset Pulse Width 20µA Supply Current (Typ. ) Guaranteed Reset Valid to VCC = +1V Power Supply Transient Immunity No External Components.
