AH3766Q-SA-7, AH3766Q - AUTOMOTIVE HALL- EFFECT LATCH

Diodes Incorporated

The AH3766Q-SA-7 by Diodes Incorporated is a AUTOMOTIVE HALL- EFFECT LATCH. Below is the official datasheet preview.

📥 Download Datasheet

AH3766Q-SA-7 AUTOMOTIVE HALL- EFFECT LATCH by Diodes Incorporated - Datasheet Preview — Official preview page of the **AH3766Q-SA-7** AUTOMOTIVE HALL- EFFECT LATCH datasheet (Diodes Incorporated).

Datasheet Details

Part number	AH3766Q-SA-7, AH3766Q
Manufacturer	DIODES Incorporated
File Size	487.95 KB
Description	AUTOMOTIVE HALL- EFFECT LATCH
Datasheet	AH3766Q-DiodesIncorporated.pdf
Note	This datasheet PDF includes multiple part numbers: AH3766Q-SA-7, AH3766Q. Please refer to the document for exact specifications by model.

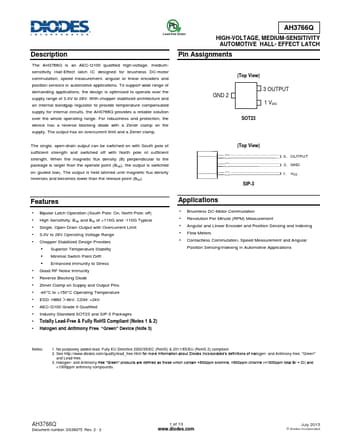

Additional preview pages of the AH3766Q-SA-7 datasheet.

AH3766Q-SA-7 Product details

Description

The AH3766Q is an AEC-Q100 qualified high-voltage, mediumsensitivity Hall-Effect latch IC designed for brushless DC-motor commutation, speed measurement, angular or linear encoders and position sensors in automotive applications.

Features

Bipolar Latch Operation (South Pole: On, North Pole: off).
High Sensitivity: Bop and Brp of +110G and -110G Typical.
Single, Open-Drain Output with Overcurrent Limit.
3.0V to 28V Operating Voltage Range.
Chopper Stabilized Design Provides.
Superior Temperature Stability.
Minimal Switch Point Drift.
Enhanced Immunity to Stress.
Good RF Noise Immunity.
Reverse Blocking Diode.
Zener Clamp on Supply and Output Pi.
