ALD12 Dimmer Enclosures

ALD12 Description

ALD Dimmer Enclosures .

ALD12 Features

* Attractive crinkle black finish. Available in 2 sizes: ALD6 (6 dimmer capacity) and ALD12 (12 dimmer capacity). An enclosure consists of: -Steel box and cover -Neutral and input terminations -Mounting rails for dimmer modules -Power supply for controls -Cooling fan for dimmers Neutral

ALD12 Applications

* Dimmer Modules (not included)
* The enclosure is supplied as a preassembled unit with the dimmer modules and dimmer electronics pre-installed and wired. The dimmer panel also serves as the distribution panel. No branch circuit breaker panel is required. The input circuiting to the dimmer module

📥 Download Datasheet

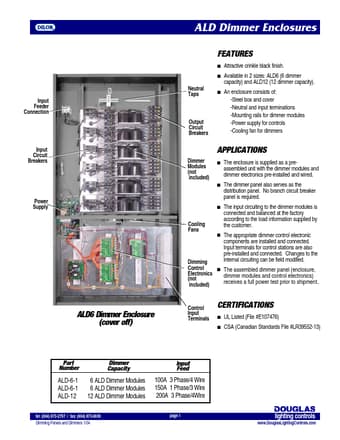

ALD12 Datasheet Preview — Preview of ALD12 PDF

Datasheet Details

Part number: ALD12
Manufacturer: Dilor
File Size: 337.77 KB
Datasheet: ALD12_Dilor.pdf
Description: Dimmer Enclosures
