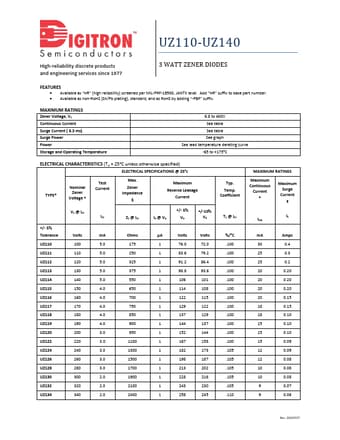

UZ110-UZ140
High-reliability discrete products and engineering services since 1977
3 WATT ZENER DIODES
FEATURES Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number. Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.
MAXIMUM RATINGS Zener Voltage, VZ Continuous Current Surge Current ( 8.3 ms) Surge Power Power Storage and Operating Temperature
6.8 to 400V See table See table See graph See lead temperature derating curve -65 to +175°C
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) ELECTRICAL SPECIFICATIONS @ 25°c
TYPE*
Nominal Zener
Voltage †
Test Current
Max.
