UT3040 - STANDARD RECOVERY RECTIFIERS

Download the UT3040 datasheet PDF. This datasheet also covers the UT3005 variant, as both devices belong to the same standard recovery rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
  • Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UT3005-DigitronSemiconductors.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number UT3040
Manufacturer Digitron Semiconductors
File Size 914.40 KB
Description STANDARD RECOVERY RECTIFIERS
Datasheet download datasheet UT3040 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UT3040 Standard Recovery Rectifiers Microsemi
UT3005 Standard Recovery Rectifiers Microsemi
UT3006 N-Channel Power MOSFET Unisonic Technologies
UT3008-H P-CHANNEL POWER MOSFET UTC
UT3010 Standard Recovery Rectifiers Microsemi

Other Datasheets by Digitron Semiconductors

Part Number Description
UT3005 STANDARD RECOVERY RECTIFIERS
UT3010 STANDARD RECOVERY RECTIFIERS
UT3020 STANDARD RECOVERY RECTIFIERS
UT3060 STANDARD RECOVERY RECTIFIERS
UT347 STANDARD RECOVERY RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

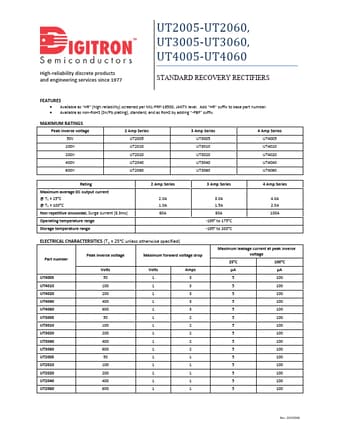

High-reliability discrete products and engineering services since 1977 UT2005-UT2060, UT3005-UT3060, UT4005-UT4060 STANDARD RECOVERY RECTIFIERS FEATURES  Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.  Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix. MAXIMUM RATINGS Peak inverse voltage 50V 100V 200V 400V 600V 2 Amp Series UT2005 UT2010 UT2020 UT2040 UT2060 3 Amp Series UT3005 UT3010 UT3020 UT3040 UT3060 4 Amp Series UT4005 UT4010 UT4020 UT4040 UT4060 Rating Maximum average DC output current @ TA = 25°C @ TA = 100°C Non repetitive sinusoidal, Surge current (8.3ms) Operating temperature range Storage temperature range 2 Amp Series 2.0A 1.0A 60A 3 Amp Series 3.0A 1.
