SMCJ17A TRANSIENT ABSORPTION ZENER DIODES

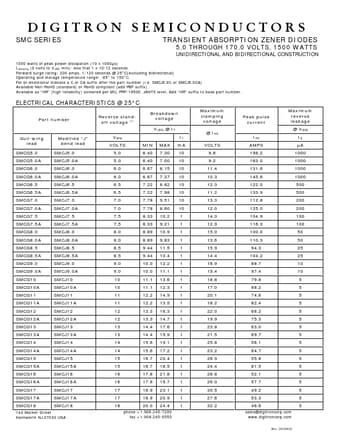

DIGITRON SEMICONDUCTORS SMC SERIES TRANSIENT ABSORPTION ZENER DIODES 5.0 THROUGH 170.0 VOLTS, 1500 WATTS UNIDIRECTIONAL AND BIDIRECTIONAL CONSTRUCTION 1500 watts of peak power dissipation (10 x 1000µs) tclamping (0 volts to V(BR) min): less that 1 x 10-12 seconds Forward surge rating: 200 amps, 1/120 seconds @ 25°C(excluding bidirectional) Operating and storage temperature range: -65° to 150°C For bi-directional indicate a C or CA suffix after the part number (i.e. SMCJ5.0C or SMCJ5.0CA) Avai.

SMCJ17A Datasheet (511.49 KB)
