1N6621 - ULTRA FAST RECTIFIERS

Download the 1N6621 datasheet PDF. This datasheet also covers the 1N6620 variant, as both devices belong to the same ultra fast rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
  • Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N6620-DigitronSemiconductors.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N6621
Manufacturer Digitron Semiconductors
File Size 713.87 KB
Description ULTRA FAST RECTIFIERS
Datasheet download datasheet 1N6621 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N6621 Ultra Fast Recovery Rectifier Diode SEMTECH
1N6621 ULTRA FAST RECOVERY GLASS RECTIFIERS Microsemi
1N6621US SURFACE MOUNT ULTRA FAST RECOVERY GLASS RECTIFIERS Microsemi
1N6620 Ultra Fast Recovery Rectifier Diode SEMTECH
1N6620 ULTRA FAST RECOVERY GLASS RECTIFIERS Microsemi

Other Datasheets by Digitron Semiconductors

Part Number Description
1N6620 ULTRA FAST RECTIFIERS
1N6622 ULTRA FAST RECTIFIERS
1N6623 ULTRA FAST RECTIFIERS
1N6624 ULTRA FAST RECTIFIERS
1N6625 ULTRA FAST RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

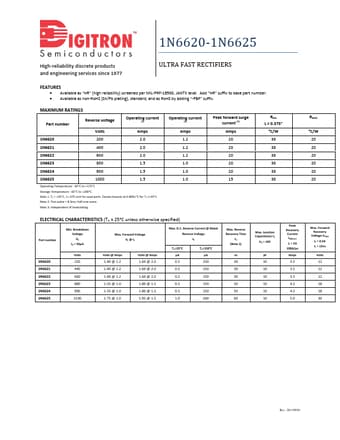

1N6620-1N6625 High-reliability discrete products and engineering services since 1977 ULTRA FAST RECTIFIERS FEATURES  Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.  Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix. MAXIMUM RATINGS Part number Reverse voltage Operating current (1) Volts Amps 1N6620 200 2.0 1N6621 400 2.0 1N6622 600 2.0 1N6623 800 1.5 1N6624 900 1.5 1N6625 1000 1.5 Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +200°C Note 1: TL = +55°C, L=.375 inch for axial parts. Derate linearly at 0.80%/°C for TL >+55°C. Note 2: Test pulse = 8.3ms, half sine wave. Note 3: Independent of heatsinking. Operating current (3) Amps 1.2 1.2 1.
