1N6360 - Transient Voltage Suppressor

Download the 1N6360 datasheet PDF. This datasheet also covers the 1N6356 variant, as both devices belong to the same transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
  • Available Non-RoHS (standard) or RoHS compliant (add PBF suffix).
  • 1500 Watts for 10/1000µs with repetition rate of 0.01% or less at lead temperature TL = 25°C.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N6356-DigitronSemiconductors.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N6360
Manufacturer Digitron Semiconductors
File Size 1.12 MB
Description Transient Voltage Suppressor
Datasheet download datasheet 1N6360 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N6360 1500 Watt Low Clamping Factor Transient Voltage Suppressor Microsemi
1N6361 1500 Watt Low Clamping Factor Transient Voltage Suppressor Microsemi
1N6362 1500 Watt Low Clamping Factor Transient Voltage Suppressor Microsemi
1N6363 1500 Watt Low Clamping Factor Transient Voltage Suppressor Microsemi
1N6364 1500 Watt Low Clamping Factor Transient Voltage Suppressor Microsemi

Other Datasheets by Digitron Semiconductors

Part Number Description
1N6361 Transient Voltage Suppressor
1N6362 Transient Voltage Suppressor
1N6363 Transient Voltage Suppressor
1N6364 Transient Voltage Suppressor
1N6365 Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

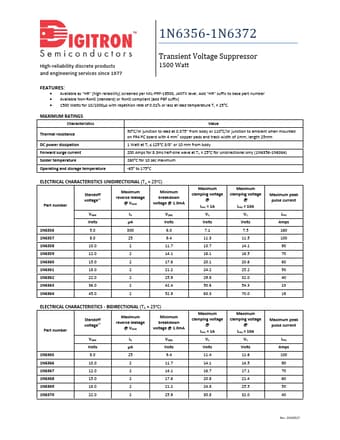

1N6356-1N6372 High-reliability discrete products and engineering services since 1977 Transient Voltage Suppressor 1500 Watt FEATURES:  Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number  Available Non-RoHS (standard) or RoHS compliant (add PBF suffix)  1500 Watts for 10/1000µs with repetition rate of 0.01% or less at lead temperature TL = 25°C. MAXIMUM RATINGS Characteristics Thermal resistance DC power dissipation Forward surge current Solder temperature Operating and storage temperature Value 50°C/W junction to lead at 0.375” from body or 110°C/W junction to ambient when mounted on FR4 PC board with 4 mm2 copper pads and track width of 1mm, length 25mm 1 Watt at TL ≤ 125°C 3/8” or 10 mm from body 200 Amps for 8.
