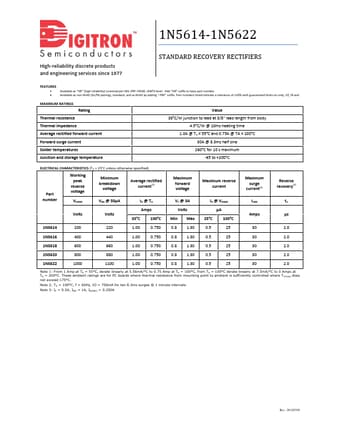

1N5614-1N5622
High-reliability discrete products and engineering services since 1977
STANDARD RECOVERY RECTIFIERS
FEATURES
Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number. Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix. Part numbers listed indicate a tolerance of ±20% with guaranteed limits on only, VZ, IR and
MAXIMUM RATINGS
Rating Thermal resistance Thermal impedance Average rectified forward current Forward surge current Solder temperatures Junction and storage temperature
Value 38°C/W junction to lead at 3/8” lead length from body
4.5°C/W @ 10ms heating time 1.0A @ TA = 55°C and 0.75A @ TA = 100°C
30A @ 8.
1N5614 Datasheet
