DFPSQRT - Floating Point Pipelined Square Root Unit

Digital Core Design

The DFPSQRT by Digital Core Design is a Floating Point Pipelined Square Root Unit. Below is the official datasheet preview.

📥 Download Datasheet

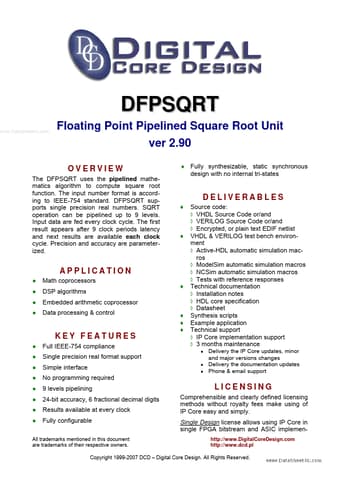

DFPSQRT Floating Point Pipelined Square Root Unit by Digital Core Design - Datasheet Preview — Official preview page of the **DFPSQRT** Floating Point Pipelined Square Root Unit datasheet (Digital Core Design).

Datasheet Details

Part number	DFPSQRT
Manufacturer	Digital Core Design
File Size	178.99 KB
Description	Floating Point Pipelined Square Root Unit
Datasheet	DFPSQRT_DigitalCoreDesign.pdf
Additional preview pages of the DFPSQRT datasheet.

DFPSQRT Product details

Description

PIN clk rst en datai[31:0] datao[31:0] ofo ufo ifo TYPE Input Input Input Input DESCRIPTION Global system clock Global system reset Enable computing Data bus input Output Data bus output Output Overflow flag Output Underflow flag Output Invalid result flag All trademarks mentioned in this document are trademarks of their respective owners.http://www.DigitalCoreDesign.com http://www.dcd.pl Copyright 1999-2007 DCD Digital Core Design.

Features

Full IEEE-754 compliance Single precision real format support Simple interface No programming required 9 levels pipelining 24-bit accuracy, 6 fractional decimal digits Results available at every clock Fully configurable Delivery the IP Core updates, minor and major versions changes Delivery the documentation updates Phone & email support.
