iW1679-50 - Off-Line Digital Green-Mode Quasi-Resonant PWM Controller

Dialog Semiconductor

📥 Download Datasheet

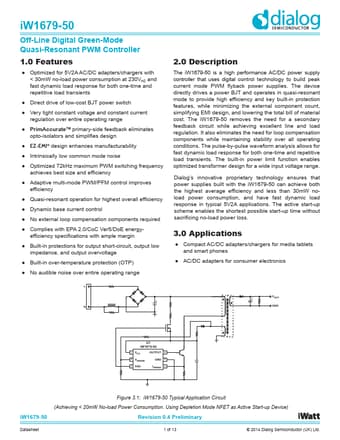

iW1679-50 Datasheet Preview — Preview of iW1679-50 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	iW1679-50
Manufacturer	Dialog Semiconductor
File Size	469.86 KB
Description	Off-Line Digital Green-Mode Quasi-Resonant PWM Controller
Datasheet	iW1679-50-DialogSemiconductor.pdf

iW1679-50 Product details

Features

Optimized for 5V2A AC/DC adapters/chargers with < 30mW no-load power consumption at 230VAC and fast dynamic load response for both one-time and repetitive load transients.
Direct drive of low-cost BJT power switch.
Very tight constant voltage and constant current regulation over entire operating range.
PrimAccurateTM primary-side feedback eliminates opto-isolators and simplifies design.
EZ-EMI® design enhances manufacturability.
Intrin.
