DA9313 - High Efficiency Dual Cell Switched Capacitor Divider

Description

DA9313 is a high-voltage power converter with a maximum output current of 10 A, suitable for applications supplied from a dual (2S) Li-ion or Li-polymer stacked cell battery pack, or any input voltage between 5 V and 10.5 V.

The converter operates with efficiency during conversion of up to 98 %.

Features

  • 2S to 1S power voltage converter.
  • VOUT = ½ VIN.
  • 5 V to 10.5 V input voltage (2S Li-ion stacked.
  • High and flat efficiency, up to 98 % battery pack).
  • 10 A total output current (standalone).
  • 20 A total output current (master/slave).
  • Typical 55 μA quiescent current (standalone).
  • Typical 70 μA total quiescent current in master/slave configuration.
  • 1.0 mm max external components height.
  • Package 43 WLCSP (RouteEasy™ equivalent.
  • Integra.

📥 Download Datasheet

📁 Similar Datasheet

  • DA9313 - High Efficiency Dual Cell Switched Capacitor Divider (Renesas)
  • DA9318L - High-Voltage Direct Charger (Renesas)
  • DA9318M - High-Voltage Direct Charger (Renesas)
  • DA9389 - Multimode Switched Capacitive Divider (Renesas)
  • DA90 - R.F. BATTERY DIODE (Philips)
  • DA9030 - Advanced Power Management Controllers (Intel)
  • DA9034 - Audio and Power Subsystem (Dialog)
  • DA903x - Advanced Power Management Controllers (Intel)
  • DA9061 - PMIC (Renesas)
  • DA9061-A - PMIC (Renesas)
Other Datasheets by Dialog Semiconductor

Full PDF Text Transcription

Click to expand full text

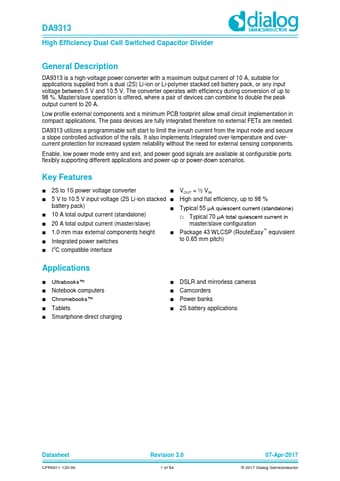

DA9313 High Efficiency Dual Cell Switched Capacitor Divider General Description DA9313 is a high-voltage power converter with a maximum output current of 10 A, suitable for applications supplied from a dual (2S) Li-ion or Li-polymer stacked cell battery pack, or any input voltage between 5 V and 10.5 V. The converter operates with efficiency during conversion of up to 98 %. Master/slave operation is offered, where a pair of devices can combine to double the peak output current to 20 A. Low profile external components and a minimum PCB footprint allow small circuit implementation in compact applications. The pass devices are fully integrated therefore no external FETs are needed.
