DA7217 - Ultra-Low Power Stereo Codec

Description

DA7217 is a high-performance, low-power audio codec optimized for use in headsets or wearable devices.

It has differential headphone outputs for use inside headset devices, offering excellent left to right channel separation and common mode noise rejection.

Features

  • High performance stereo DAC to headphone.
  • Flexible digital mixing from all seven inputs to playback path with 110 dB dynamic range all six outputs with independent gain on each.
  • 4 mW stereo playback power consumption mixer path.
  • DAC digital fil.

📥 Download Datasheet

📁 Similar Datasheet

  • DA7212 - Ultra-Low Power Stereo Codec (Renesas)
  • DA7219 - Audio Codec (Renesas)
  • DA7202 - 10W Mono Class-D Amplifier (Renesas)
  • DA7280 - LRA/ERM Haptic Driver (Renesas)
  • DA7280-A - Wideband LRA/ERM Haptic Driver (Renesas)
  • DA7281 - LRA/ERM Haptic Driver (Renesas)
  • DA7282 - LRA/ERM Ultra-Low Power Haptic Driver (Renesas)
  • DA78L05 - TECHNICAL SPECIFICATIONS OF 3-TERMINAL POSITIVE VOLTAGE REGULATOR (Dc Components)
  • DA78L05A - TECHNICAL SPECIFICATIONS OF 3-TERMINAL POSITIVE VOLTAGE REGULATOR (Dc Components)
  • DA78L06 - TECHNICAL SPECIFICATIONS OF 3-TERMINAL POSITIVE VOLTAGE REGULATOR (Dc Components)
Other Datasheets by Dialog Semiconductor
  • DA7210 - Ultra-low power stereo codec
  • DA7211 - Ultra-low power stereo codec
  • DA7212 - Ultra-low power stereo codec
  • DA7218 - Ultra-Low Power Stereo Codec
  • DA7219 - Audio codec
  • DA7202 - 10W Mono Class-D Amplifier
  • DA7280 - LRA/ERM Haptic Driver

Full PDF Text Transcription

Click to expand full text

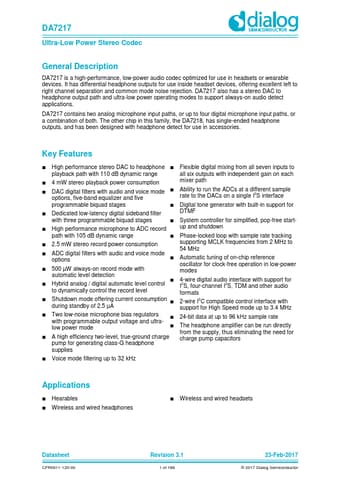

DA7217 Ultra-Low Power Stereo Codec General Description DA7217 is a high-performance, low-power audio codec optimized for use in headsets or wearable devices. It has differential headphone outputs for use inside headset devices, offering excellent left to right channel separation and common mode noise rejection. DA7217 also has a stereo DAC to headphone output path and ultra-low power operating modes to support always-on audio detect applications. DA7217 contains two analog microphone input paths, or up to four digital microphone input paths, or a combination of both. The other chip in this family, the DA7218, has single-ended headphone outputs, and has been designed with headphone detect for use in accessories.
