DA6102 - 6-Channel High Efficiency PMIC

DA6102 Description

DA6102 6-Channel High Efficiency PMIC for 2-Cell Systems General .
The DA6102 is a highly integrated multi-channel PMIC designed for 2-cell lithium-ion battery powered systems.

DA6102 Features

* include two external load switches, two LDO controllers, external clock synchronization, global enable pin, and configurable PGOOD pin. An I2C interface enables flexibility and easy configuration of each regulator’s output voltage, switching frequency, power sequencing, and fault protection. Most fe

DA6102 Applications

* DSLR cameras
* MILC cameras Datasheet Revision 2.4 1 of 82 15-May-2019 © 2019 Dialog Semiconductor DA6102 6-Channel High Efficiency PMIC for 2-Cell Systems System Diagram V_BATT + 4.5V
* 11.5V EN VCORE EXCLK VBATT CSG1 CSH1 CSL1 BG VREF UVLO VREF OSC ISNS + CS_1 CSA_1 CSD

📥 Download Datasheet

Preview of DA6102 PDF

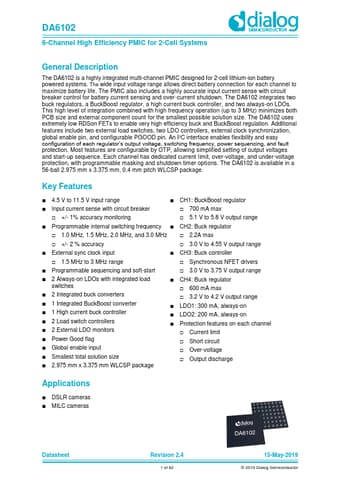

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DA6102
Manufacturer
Dialog Semiconductor
File Size
2.44 MB
Datasheet
DA6102-Dialog.pdf
Description
6-Channel High Efficiency PMIC
