LF8200 Datasheet (Delta) - FAST ETHERNET 10BASE-T/100BASE-TX TRANSFORMER MODULES

LF8200, FAST ETHERNET 10BASE-T/100BASE-TX TRANSFORMER MODULES

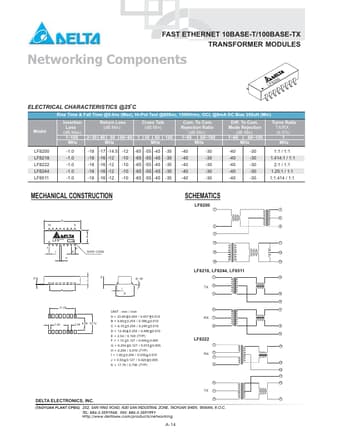

FAST ETHERNET 10BASE-T/100BASE-TX TRANSFORMER MODULES Networking Components LF8200 ELECTRICAL CHARACTERISTICS @25oC Rise Time & Fall Time @5.0ns (Max), Hi-Pot Test @60Sec, 1500Vrms, OCL @8mA DC Bias 350uH (Min) Model Insertion Loss (dB Max) 1~100 MHz Return Loss (dB Min) 2~30 40 50 60~80 MHz Cross Talk (dB Min) 1 30 60 100 MHz Com.

To Com.

Rejection Ratio (dB Min) 1~60 60~100 MHz Diff.

To Com.

Mode Rejection (dB Min) 1~60 60~100 MHz Turns Ratio TX/RX ( 5%) 1 MHz LF8200 -1.0 -18 -17 -14
