DH06D1205A - DH06S/D Series 6W DC/DC CONVERTER

Product Overview

Delta

📥 Download Datasheet

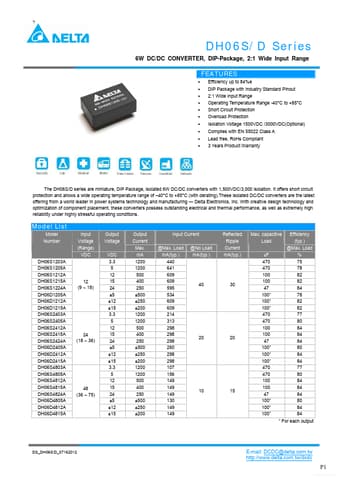

DH06D1205A DH06S/D Series 6W DC/DC CONVERTER by Delta - Datasheet Preview — Datasheet preview – DH06D1205A

Datasheet Details

Part number	DH06D1205A
Manufacturer	Delta
File Size	227.28 KB
Description	DH06S/D Series 6W DC/DC CONVERTER
Datasheet	DH06D1205A Datasheet
Note	This datasheet PDF includes multiple part numbers: DH06D1205A, DH06S1203A. Please refer to the document for exact specifications by model.
Additional preview pages of the DH06D1205A datasheet.

Product details

Features

Efficiency up to 84%e DIP Package with Industry Standard Pinout 2:1 Wide Input Range Operating Temperature Range -40°C to +85°C Short Circuit Protection Overload Protection Isolation Voltage 1500VDC /3000VDC(Optional) Complies with EN 55022 Class A Lead free, RoHs Compliant 3 Years Product Warranty The DH06S/D series are miniature, DIP Package, isolated 6W DC/DC converters with 1,500VDC/3,000 isolation. It offers short circuit protecti.
