DG06S2412A - DG06S/D Series 6W DC/DC CONVERTER

Download the DG06S2412A datasheet PDF. This datasheet also covers the DG06S0503A variant, as both devices belong to the same dg06s/d series 6w dc/dc converter family and are provided as variant models within a single manufacturer datasheet.

Features

  • Efficiency up to 86% DIP Package with Industry Standard Pinout 1500VDC Voltage Isolation 2:1 Wide Input Range Low ripple and noise Complies with EN55022 Class A Temperature Performance -40℃ to +71℃ Short Circuit Protection Internal SMD Construction Lead free, RoHs Compliant 3 Years Product Warranty The DG06S/D series are miniature, DIP Package, isolated 6W DC/DC converters with 1,500VDC isolation. It offers short circuit protecti.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DG06S0503A_Delta.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DG06S2412A
Manufacturer Delta
File Size 233.11 KB
Description DG06S/D Series 6W DC/DC CONVERTER
Datasheet download datasheet DG06S2412A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DG06241 64 x 240 LCD Driver Sanyo Electric
DG06243 64 x 240 LCD Driver Sanyo Electric
DG06245 64 x 240 LCD Driver Sanyo Electric
DG03-166 MONOLITHIC AMPLIFIERS Mini-Circuits
DG03-168 MONOLITHIC AMPLIFIERS Mini-Circuits

Other Datasheets by Delta

Part Number Description
DG06S2415A DG06S/D Series 6W DC/DC CONVERTER
DG06S2403A DG06S/D Series 6W DC/DC CONVERTER
DG06S2405A DG06S/D Series 6W DC/DC CONVERTER
DG06S0503A DG06S/D Series 6W DC/DC CONVERTER
DG06S0505A DG06S/D Series 6W DC/DC CONVERTER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

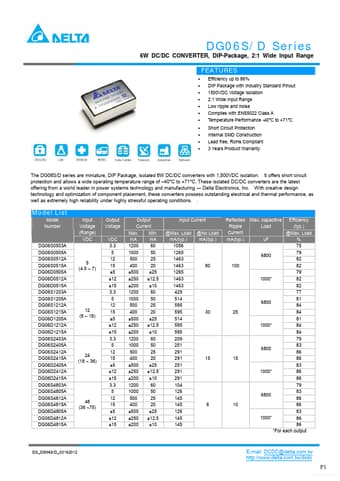

DG06S/D Series 6W DC/DC CONVERTER, DIP-Package, 2:1 Wide Input Range FEATURES Š Š Š Š Š Š Š Š Š Š Š Efficiency up to 86% DIP Package with Industry Standard Pinout 1500VDC Voltage Isolation 2:1 Wide Input Range Low ripple and noise Complies with EN55022 Class A Temperature Performance -40℃ to +71℃ Short Circuit Protection Internal SMD Construction Lead free, RoHs Compliant 3 Years Product Warranty The DG06S/D series are miniature, DIP Package, isolated 6W DC/DC converters with 1,500VDC isolation. It offers short circuit protection and allows a wide operating temperature range of –40°C to +71°C. These isolated DC/DC converters are the latest offering from a world leader in power systems technology and manufacturing ― Delta Electronics, Inc.
