DG06D1212A - DG06S/D Series 6W DC/DC CONVERTER

Product Overview

Delta

📥 Download Datasheet

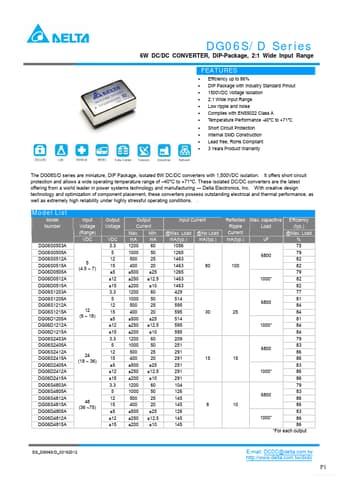

DG06D1212A DG06S/D Series 6W DC/DC CONVERTER by Delta - Datasheet Preview — Datasheet preview – DG06D1212A

Datasheet Details

Part number	DG06D1212A
Manufacturer	Delta
File Size	233.11 KB
Description	DG06S/D Series 6W DC/DC CONVERTER
Datasheet	DG06D1212A Datasheet
Note	This datasheet PDF includes multiple part numbers: DG06D1212A, DG06S0503A. Please refer to the document for exact specifications by model.
Additional preview pages of the DG06D1212A datasheet.

Product details

Features

Efficiency up to 86% DIP Package with Industry Standard Pinout 1500VDC Voltage Isolation 2:1 Wide Input Range Low ripple and noise Complies with EN55022 Class A Temperature Performance -40℃ to +71℃ Short Circuit Protection Internal SMD Construction Lead free, RoHs Compliant 3 Years Product Warranty The DG06S/D series are miniature, DIP Package, isolated 6W DC/DC converters with 1,500VDC isolation. It offers short circuit protecti.
