DD03S0512A - DD03S/D Series 3W DC/DC CONVERTER

Download the DD03S0512A datasheet PDF (DD03S0505A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for dd03s/d series 3w dc/dc converter.

Features

  • Efficiency up to 81% DIP Package with Industry Standard Pinout Wide 2:1 Input Range Operating Temperature Range.
  • 40°C to +85°C Isolation Voltage 1500 VDC Short Circuit Protection Complies with EN55022,Class A Lead free, RoHs Compliant 3 Years Product Warranty The DD03S/D series are miniature, DIP Package, isolated 3W DC/DC converters with 1,500VDC isolation. The DD03S/D series features fully regulated output and wide 2:1 input voltag.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DD03S0505A_Delta.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DD03S0512A
Manufacturer Delta
File Size 224.80 KB
Description DD03S/D Series 3W DC/DC CONVERTER
Datasheet download datasheet DD03S0512A Datasheet

📁 Similar Datasheet

  • DD01-92 - Directional Detector (Alpha Industries)
Other Datasheets by Delta

Full PDF Text Transcription

Click to expand full text

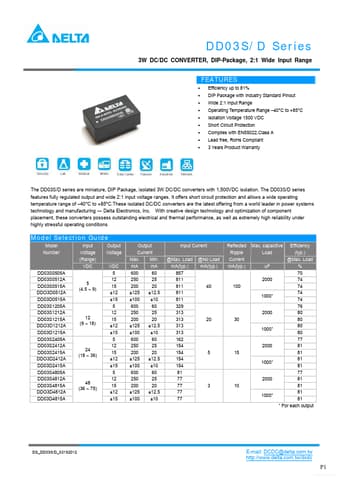

DD03S/D Series 3W DC/DC CONVERTER, DIP-Package, 2:1 Wide Input Range FEATURES Š Š Š Š Š Š Š Š Š Efficiency up to 81% DIP Package with Industry Standard Pinout Wide 2:1 Input Range Operating Temperature Range –40°C to +85°C Isolation Voltage 1500 VDC Short Circuit Protection Complies with EN55022,Class A Lead free, RoHs Compliant 3 Years Product Warranty The DD03S/D series are miniature, DIP Package, isolated 3W DC/DC converters with 1,500VDC isolation. The DD03S/D series features fully regulated output and wide 2:1 input voltage ranges. It offers short circuit protection and allows a wide operating temperature range of –40°C to +85°C.These isolated DC/DC converters are the latest offering from a world leader in power systems technology and manufacturing ― Delta Electronics, Inc.
