DB02D0505A - DB02S/D Series 2W DC/DC CONVERTER

Product Overview

Delta

📥 Download Datasheet

DB02D0505A DB02S/D Series 2W DC/DC CONVERTER by Delta - Datasheet Preview — Datasheet preview – DB02D0505A

Datasheet Details

Part number	DB02D0505A
Manufacturer	Delta
File Size	219.98 KB
Description	DB02S/D Series 2W DC/DC CONVERTER
Datasheet	DB02D0505A Datasheet
Note	This datasheet PDF includes multiple part numbers: DB02D0505A, DB02S0503A. Please refer to the document for exact specifications by model.

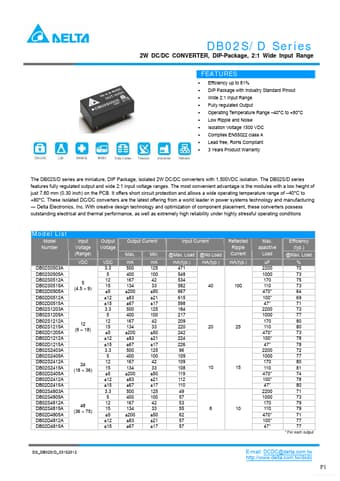

Additional preview pages of the DB02D0505A datasheet.

Product details

Features

Efficiency up to 81% DIP Package with Industry Standard Pinout Wide 2:1 Input Range Fully regulated Output Operating Temperature Range.
40°C to +80°C Low Ripple and Noise Isolation Voltage 1500 VDC Complies EN55022 class A Lead free, RoHs Compliant 3 Years Product Warranty The DB02S/D series are miniature, DIP Package, isolated 2W DC/DC converters with 1,500VDC isolation. The DB02S/D series features fully regulated output and w.
