NE12S0A0H10, NE12S0A0V10 DC/DC Power Modul

NE12S0A0H10 Description

.
Enable (On/Off) The ENABLE (on/off) input allows external circuitry to put the NE converter into a low power dissipation (sleep) mode.

NE12S0A0H10 Features

* High Efficiency: 94.0% @ 12Vin, 5V/10A out Size: 10.4mm x 16.5mm x 11.0 mm (0.41”×0.65”×0.43”) Wide input range: 3.0V~13.8V Output voltage programmable from 0.59Vdc to 5.1Vdc via external resistors No minimum load required Fixed frequency operation Input UVLO, output OCP Remote ON/OFF (Positive, 5pi

NE12S0A0H10 Applications

* which cut the module size by almost 50% in most of the cases compared to the first generation NC series POL modules. The NE 10A product family provides an ultra wide input range to support 3.3V, 5V, 8V, 9.6V, and 12V bus voltage point-of-load applications and it offers up to 10A of output current in

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NE12S0A0H10, NE12S0A0V10. Please refer to the document for exact specifications by model.

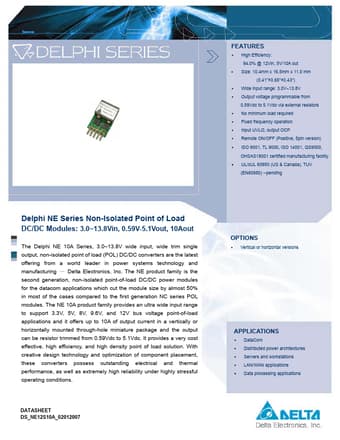

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NE12S0A0H10, NE12S0A0V10
Manufacturer
Delta Electronics
File Size
561.86 KB
Datasheet
NE12S0A0V10_DeltaElectronics.pdf
Description
DC/DC Power Modul
Note
This datasheet PDF includes multiple part numbers: NE12S0A0H10, NE12S0A0V10.
Please refer to the document for exact specifications by model.
