DVTR2815D - HIGH RELIABILITY HYBRID DC-DC CONVERTERS

Download the DVTR2815D datasheet PDF. This datasheet also covers the DVTR2800D variant, as both devices belong to the same high reliability hybrid dc-dc converters family and are provided as variant models within a single manufacturer datasheet.

Description

The DVTR series of high reliability DC-DC converters is operable over the full military (-55 °C to +125 °C) www.DataSheet4U.com temperature range with no power derating.

Unique to the DVTR series is a magnetic feedback circuit that is radiation immune.

Features

  • High Reliability Very Low Output Noise Wide Input Voltage Range: 15 to 50 Volts per MIL-STD-704 Up to 40 Watts Output Power Radiation Immune Magnetic Feedback Circuit NO Use of Optoisolators Undervoltage Lockout Indefinite Short Circuit Protection Current Limit Protection Industry Standard Pinout High Input T.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DVTR2800D_DeltaElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DVTR2815D
Manufacturer Delta Electronics
File Size 290.16 KB
Description HIGH RELIABILITY HYBRID DC-DC CONVERTERS
Datasheet download datasheet DVTR2815D Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Delta Electronics

Part Number Description
DVTR2815S HIGH RELIABILITY HYBRID DC-DC CONVERTERS
DVTR2812D HIGH RELIABILITY HYBRID DC-DC CONVERTERS
DVTR2812S HIGH RELIABILITY HYBRID DC-DC CONVERTERS
DVTR2800D HIGH RELIABILITY HYBRID DC-DC CONVERTERS
DVTR2800S HIGH RELIABILITY HYBRID DC-DC CONVERTERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

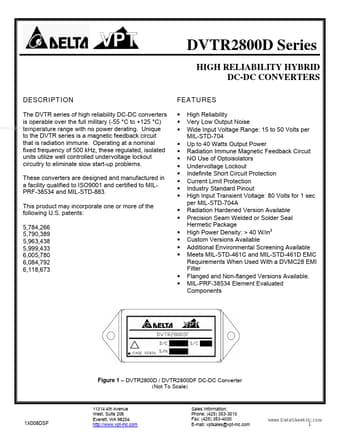

DVTR2800D Series HIGH RELIABILITY HYBRID DC-DC CONVERTERS DESCRIPTION The DVTR series of high reliability DC-DC converters is operable over the full military (-55 °C to +125 °C) www.DataSheet4U.com temperature range with no power derating. Unique to the DVTR series is a magnetic feedback circuit that is radiation immune. Operating at a nominal fixed frequency of 500 kHz, these regulated, isolated units utilize well controlled undervoltage lockout circuitry to eliminate slow start-up problems. These converters are designed and manufactured in a facility qualified to ISO9001 and certified to MILPRF-38534 and MIL-STD-883. This product may incorporate one or more of the following U.S.
